CNC Systems We Support

Maintaining legacy CNC systems like those from Philips, Heidenhain, and Grundig requires a detailed understanding of their architecture and the availability of compatible parts. We simplify this process by providing comprehensive resources and technical support. Whether it’s a CPU upgrade, EPROM replacement, or module repair, these solutions ensure continued productivity and precision in CNC operations.

All systems after 1973 with Philips Hardware are still supported by Robtec Automations GmbH (Germany) and partially by Robtec Automation LTD (UK). Heidenhain has ceased Service for all systems with Philips Hardware.

Important Warning

All 3000/5000 and Man/Mill plus systems with the Power supply type PE1927/28 (Philips) have reached the END OF LIFE long ago and should be replaced. When this P/S fails, the voltages go up to a dangerous level and can destroy ALL modules in the system.

All data from CNC systems, including MAN and MILL Plus configurations, should be backed up regularly. This includes MC, TM, and other essential files. Additionally, it is crucial to document the BIOS settings and CNC configuration pages (e.g., firmware version, IPLC version, etc.), preferably by taking notes or pictures. In the event of a flash memory or hard drive failure, recovering this data can be extremely challenging, if not impossible, making it difficult to restore the system to a functional state. Regular backups are vital to ensure system serviceability and minimize downtime.

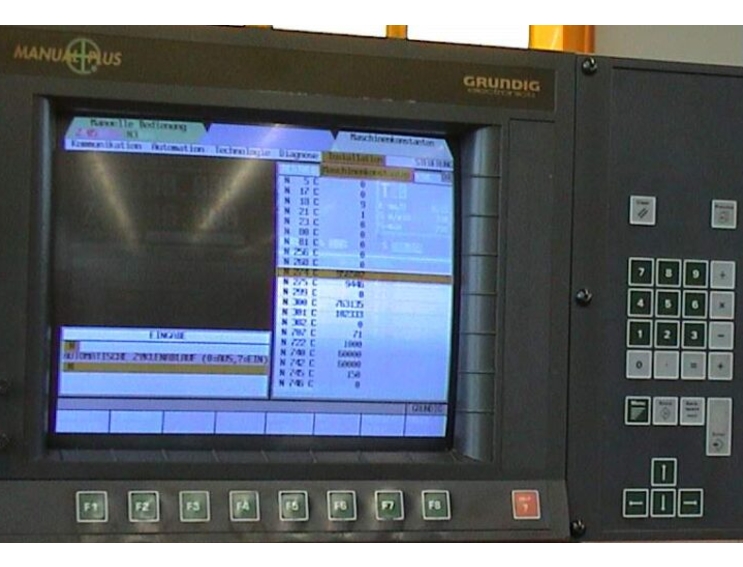

CNC 5000

The CNC 5000 series builds on the foundation of earlier systems like the CNC 3000, offering enhanced processing power and more sophisticated capabilities.

Features
Advanced multi-axis control, improved processing speed, and compatibility with a broader range of industrial machines.

Applications
Ideal for high-performance machining tasks, including automotive, aerospace, and tool manufacturing.

Key Components
CPU 386: Serves as the core processing unit, ensuring efficient execution of complex machining operations and real-time control tasks.
2716 EPROM: Ensures secure storage of firmware and essential operational data.

CNC 5000 Maho 532 CNC – Pilot 1150 / 1250 / 1290 / MILL PLUS

General
ServicecodeTypeID-NummerDescription
5322 216 112 164022 228 3080.0 CNB Controlnet Board
5322 216 112 154022 228 3061.0322-128-01KIC Keyboard Interface
5322 216 112 144022 228 3051.0318 673-01RCU – Milling
5322 216 112 184022 228 3100.0 RCU – Turning
5322 216 112 194022 228 3110.0 RDT Data Terminal
9418 859 056 31 647 281-01EPC8 Installations dongle VME/5000
5322 216 112 174022 229 3090.0 Control net termination
9700 216 502 004022 229 5020.0 15 slot Rack VME no Pow.supply
9700 216 502 504022 229 5025.0 15 slot Rack VME/IARbus/no P.S.
9418 959 045 314022 229 5000.0 4 slot Rack VME o. Pow.supply
9700 216 501 504022 229 5015.0326 984-018 slot Rack VME/IARbus/ no P.S.
9418 859 045 414022 229 5010.0318 885-018 slot Rack VME no Pow.supply
 4022 228 5010.0 8 slot Rack 532/5000 LBX.
 4022 228 5000.0 15 slot Rack 532/5000 LBX.
 4022 224 7303.0 8 slot Backplane 532/5000 LBX.
  12.99.1015RS232 Converter galvanic isolator
   RS232-RS422 Converter
   RS232-USB Converter

Powersupply
ServicecodeTypeID-NummerDescription
9700 216 201 004022 229 2000.0326 980-01Powersupply VME 100W PE1927/71
9700 216 202 004022 229 4050.0326 983-01Powersupply VME 200W PE1937/70
 4022 229 2010.0+ / – 12VPowersupply VME 200W PE1938/70
5322 216 111 494022 226 4310.0 Powersupply 15/20 PE1938
5322 216 112 434022 226 4881.0 Powersupply 7/8 PE 1928
   battery 6V/3 AH
   battery 6V/4,5 AH

Monitor
ServicecodeTypeID-NummerDescription
  367-957-02Monitor MC 140184/->TFT (unit)
  367-957-07Monitor/MC140184 TFT (Chassis)
   colour 14″ replacement TFT Typ
  322-485-03Maske 14″ TFT
   colour 532 replacement TFT Typ
  312 878-25cable VGA 25 m
  322-489-04Logo Heidenhain

Flatpanel
ServicecodeTypeID-NummerDescription
5322 216 112 084022 225 4917322 098-01Flatpanel RCU Milling
5322 216 112 544022 225 4919.0 Flatpanel Milling 532M/ 5000 Komp.
5322 216 112 564022 225 4921.0 Flatpanel Graziano 532T
5322 216 112 759418 859 4402.0322 396-01Flatpanel Milling 532M/ 5000 Komp.
5322 216 112 784022 228 4090.0322 665-01Flatpanel Manual Plus vertikal
9418 959 041 51  Flatpanel Manual Plus horizontal.
9700 216 536 84 318 847-01OPC Manual Plus
5322 216 112 334022 228 4041.0322 594-01Flatpanel F1-F8 grey
5322 216 112 554022 225 4883.1326 987-01Flatpanel MF1-MF6 grey inc fixing.
 9418 859 0520.2 MOP keyboard MILL +/1290
  326 986-01ASCII keyboard MILL +/1290

C P U
ServicecodeTypeID-NummerDescription

5322 216 112 214022 228 3140.0320 127-01CPU 386/20 512kB m. Co.
5322 214 910 664022 228 3141.032012601CPU 386/20 II 256kB o. Co.
5322 214 910 674022 228 3241.032012701CPU 386/25 512kB o. Co.
   Software set
9419 254 538 0161-0373-36 EPC 8 VME 50MHz 8MB
9418 859 0501161-0296-36322 756 01EPC 8 VME 66MHz 8MB
9419 254 538 01 343 530-01EPC 8 VME 100MHz 8MB
   Festplatte 2GB ohne EXM-HD
  322 250-03EXM-HD ohne Festplatte
9419 259 640 01  EXM-2A 1MB flash+128KB SRAM
9419 259 080 01 322 758-01EXM-8 RS 422/RS 485 CNT
  322 758-02EXM-8A RS 422/RS 485 -100MHZ
  647 281-01SW-permission Dongle 5000/M Plus
   BIOS Batt
   DRAM MOD EPC 8 VME 8MB
  341 577-01DRAM MOD EPC 8 VME 16MB

Memory
ServicecodeTypeID-NummerDescription
5322 214 910 654022 224 7356.0 SRE 0,25 MB 80ns CPU 386
5322 216 112 264022 228 3180.0 MEU Memo Ext.Unit 0,5 MB
5322 216 111 764022 228 3040.0322 087-01MEU Memo Ext.Unit 1MB
5322 214 910 484022 228 3220.0320 124-01SRE 1 MB CPU 386

Input / Output
ServicecodeTypeID-NummerDescription
5322 216 111 734022 228 3020.2322 086-01IOB
9700 216 301 104022 229 3011.0318 669-01IOB 80 VME

Graphic
ServicecodeTypeID-NummerDescription
5322 216 112 134022 228 3011.0322 092-01GCB II 5000/532

Drive
ServicecodeTypeID-NummerDescription

5322 216 112 254022 228 3161.0 DMC 3 II
5322 216 112 534022 228 3162.0 DMC 3 III
9700 216 306 004022 229 3060.0 AXE 3 Modul für DAX6 (2. auf DAX6)
9700 216 306 104022 229 3061.0 AXE 3 Modul für DAX6 (2. auf DAX6)
9700 216 309 004022 229 3090.0 DAX 3-1
9700 216 309 104022 229 3091.0 DAX 3-2
9700 216 400 104022 229 4001.0 DAX 3 DSP ext.bus
4022 229 3091.0 +4022 229 3061.0DoppelboardDAX 6 VME (Doppelplatine)
  276 245-01EXE Adapter 11µA/50x HDH für Dax
9418 859 044 21 272 476-01EXE Adapter 11µA HDH für Dax
VAR56KIN31885001318 850-01VAR56K single
VAR56K AES1+2IN085723/853722318 849-01VAR56K_AES1 + VAR56E_AES2
VAR56K AES1IN085723 VAR56K _AES1 single
VAR56E AES2IN0853722 VAR56E_AES2 Zusatzplatine
750197091 323 238-01SDC-VME
981 623 4 318 897-01DDC-2 VME Drive
   SADP- Drivemodul

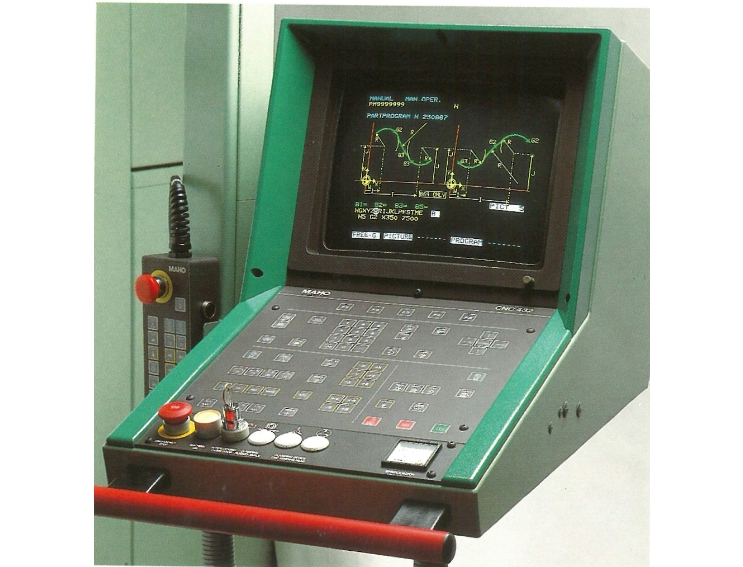

CNC 3000

The CNC 3000 series is a pivotal system in the evolution of CNC technology, offering dependable performance and scalability for various machining applications. Its design focuses on precision, reliability, and ease of integration, making it a preferred choice for industries ranging from automotive to general manufacturing.

Features
Multi-Axis Control: Supports complex machining tasks with synchronized multi-axis operations.
Modular Design: Facilitates easy maintenance and system upgrades with interchangeable components.
User-Friendly Interface: Streamlined operation through intuitive controls and program management.

Applications
The CNC 3000 is well-suited for medium to high-precision machining tasks, including milling, turning, and grinding. Its robust performance and compatibility with a variety of tools make it an industry workhorse.

Key Components
CPU 386: Provides the processing power needed to handle sophisticated control algorithms and real-time data processing.
2716 EPROM: Ensures reliable storage and retrieval of firmware, safeguarding critical operational data.
2580/30 Module: Enhances system communication and integrates seamlessly with peripheral devices.

CNC 3000 / Maho CNC432 B2T / B3T / B32T

General
ServicecodeTypeID-NummerDescription
9700 395 100 00  Software CDS 1.5 / CDS 4.1
5322 216 110 254022 226 3420.0 Control Modul 3360
5322 216 110 314022 226 3710.0 Diagnose Modul 3360
5322 216 110 494022 226 4320.0 Extern Contol Modul
5322 216 110 814022 226 3851.0322 028-01Extern Jog Modul/Handstation Maho
5322 216 111 464022 226 3861.0322 036-01Extern Jog Modul/Handstation Philips
 4022 224 7043.0322 442-01Platine Handkomando Station
5322 216 110 924022 226 3840.0 Panel Switch Modul
5322 216 110 794022 226 3831.0 V24 Converter
   Handwheel CNC 3360 (MAHO)
  322 694-01Cabel CNC-HKS with plug
 4022 226 4280.0 15 slot Rack 432/5000 LBX.
   9 slot Rack CNC432/9

Powersupply
ServicecodeTypeID-NummerDescription
PE1948 326 983-01Powersupply PE 1948
5322 216 110 224022 226 3231.0324 776-01Powersupply 3360/9 neu (PE 1870)
5322 216 110 944022 226 2270.0322 040-01Powersupply 3460/10 neu (PE 1870)
5322 216 111 164022 226 2211.0 Powersupply 3480 7 slot (alte Elektr)
5322 216 111 484022 226 4300.0 Powersupply 7/8 neu( PE 1928)
5322 216 112 434022 225 4881.0 Powersupply 7/8 neu (PE 1928 )
5322 216 111 494022 226 4310.0322 082-02Powersupply 15/20 neu ( PE 1938)
9700 216 111 164022 225 4830.0 Powersupply 3580 15 slot neu
9700 216 111 15  Powersupply 3580 20 slot neu
5322 216 112 384022 225 4861.0 Powersupply 3580 20Slot neu
   battery 6V/10 AH
   battery 6V/3- 4 AH

Monitor
ServicecodeTypeID-NummerDescription
  320 075-01Neuer HDH Typ MC 14120-710
  635 486-08Neuer HDH Typ B2T (ex.Fimi)
   TFT Monitor 12″ (14″ Ersatz)
   TFT Monitor 12″ (14″ Ersatz)
  367 949-02Monitor Maske 12″ 1201/12GP
  322 495-01Monitor Maske 12″ F1-F5

Flatpanel
ServicecodeTypeID-NummerDescription
  322 389-01Flatpanel 3360/432 V 300
5322 216 112 664022 225 4843.0 Flatpanel 3360 Milling V 300
5322 216 112 674022 225 4840.0322 029-01Flatpanel 3360/432 V 300 Maho
5322 216 110 974022 225 4737.0 Flatpanel 432 Maho V 400
5322 216 112 694022 225 4737.0322 351-01Flatpanel 3460/432 V400-700
5322 216 112 694022 225 4737.0322 351-01Flatpanel 3460/432 400-700 EGIN
5322 216 111 324022 226 3985.0322 072-01Flatpanel 3560 Milling V500-700
5322 216 110 524022 225 4837.0322 055-01Flatpanel Turning V 200 B2T
5322 216 111 814022 225 4862.0 Flatpanel Turning V 400
5322 216 111 354022 226 3995.0326 989-01Flatpanel Graziano 432T
5322 216 111 314022 225 4827.0322 071-01Flatpanel Turning V 500/700
5322 216 111 264022 221 3114.0322 068 -01Flatpanel F1-F5 V 400
  322 696-01Flat cable F1-F5
  237 050-05Flatpanel Maho 332 (Heidenhain)
Boe 087.1114.100100G1022.3766 mach.op.panel B2T/200
Boe 000.0000.127561G1002.7116 mach.op.pane B3T/400
 4022 224 7043322 442-01Platine remote control./Maho
5322 216 111 064022 225 4865.0322 394-01Flatpanel/Handkom./Maho
5322 216 111 054022 226 3860.0322 395-01Flatpanel/Handkom./Philips

C P U
ServicecodeTypeID-NummerDescription
5322 216 110 234022 226 3320.032477701CPU 8088/5
9700 216 110 404022 226 3340.032699301CPU 8088/6
5322 216 110 474022 226 3380.032205001CPU 8088/6 I
5322 216 110 774022 226 3381.032202501CPU 8088/6 II
5322 216 110 914022 226 3390.032203701CPU 8088/8 III
5322 216 111 084022 226 3382.032204401CPU 8088/6 IV
5322 216 111 094022 226 3391.032204501CPU 8088/8 V
5322 216 111 144022 226 2330.032204701CPU 286/10 I
5322 216 111 224022 226 2331.032206401CPU 286/10 P Milling
5322 216 111 294022 226 2360.032207001CPU 286/12 P I
5322 216 111 424022 226 2370.032207601CPU 286/10 P n. embargo
5322 216 111 434022 226 2380.032207701CPU 286/12 P I n. embargo
5322 216 111 574022 226 2381.032208501CPU 286/12 P II n. embargo
5322 216 111 514022 226 2361.032208301CPU 286/12 P II
5322 216 111 554022 226 2350.032209901CPU 386/16 R Turning V 700
5322 216 111 564022 226 2390.032208401CPU 386/16 V 700 0,5 MB o.Co
   CPU 386
   Software Vers 100-700

Memory
ServicecodeTypeID-NummerDescription
9700 216 110 24 32252501Memo 256 K
5322 216 110 244022 226 3330.032477801Memory 64k 8088/5
5322 216 111 234022 226 2340.0 MEM 286/386 1 Mbyte
5322 216 111 974022 224 7291.032208901SRE 120ns 256KB CPU386/16MHz
5322 214 910 654022 224 7356.032012501SRE 80ns 256kB CPU386/16-25MHz
5322 216 110 464022 226 2301.0 Memory 64k 8088/5/6/8
 4022 226 2310.0 Memory 64k 8088/5/6/8 Ram gelötet

Drive
ServicecodeTypeID-NummerDescription
 4022 226 3620.0 LM/LM
5322 216 110 274022 226 3621.0324 781-01LM/LM 1
5322 216 110 554022 226 3622.0322 057-01LM/LM 2
5322 216 112 714022 226 3622.0322 392-01LM/LM 2
5322 216 110 284022 226 3631.0322 051-01LM /RM 1
5322 216 110 564022 226 3632.0 LM /RM 2
5322 216 110 864022 226 3633.0322 033-01LM /RM 3
5322 216 112 724022 226 3633.0 LM/RM 3
5322 216 110 294022 226 3641.0 RM/RM 1
5322 216 110 574022 226 3642.0 RM/RM 2
5322 216 110 874022 226 3643.0322 393-01RM/RM 3
5322 216 111 164022 226 3644.0 RM/RM 4
5322 216 111 244022 226 3645.0 RM/RM 5
5322 216 111 834022 226 3646.0 RM/RM diff 1
5322 216 112 024022 226 3647.0 RM/RM diff 2
5322 216 110 414022 226 3651.0 RM 1
5322 216 110 584022 226 3652.0 RM 2
5322 216 110 884022 226 3653.0 RM 3
5322 216 111 174022 226 3655.0 RM 4
5322 216 111 254022 226 3656.0 RM 5
5322 216 111 994022 226 3657.0 RM diff 1
5322 216 112 034022 226 3658.0 RM diff 2
5322 216 110 784022 226 3670.0 AUX/AXIS
5322 216 111 184022 226 3680.0 LS/LS 1
5322 216 111 444022 226 3681.0 LS/LS 2
5322 216 111 194022 226 3690.0 LS/RM 1
5322 216 111 454022 226 3691.0 LS/RM 2
9700 216 111 454022 226 4410.0 Dual LMS 5

Input / Output
ServicecodeTypeID-NummerDescription
5322 216 110 264022 226 3510.0 I/O 40
5322 216 110 514022 226 3530.0 I/O 32 I
5322 216 110 854022 226 3531.0322 032-01I/0 32 II (1-8)
5322 216 111 124022 226 3540.0 I/O 32 IIB (9-12)

Video / Graphic
ServicecodeTypeID-NummerDescription
5322 216 110 484022 226 3431.0 Control Teletext I
5322 216 111 014022 226 3433.0 Control Teletext Color II
5322 216 110 824022 226 3450.0 Graphics 2 planes I
9700 216 110 824022 226 3451.0 Graphics 2 planes II
5322 216 110 834022 226 3470.0 Graphics 8 Planes Unit A
5322 216 110 844022 226 3480.0 Graphics 8 Planes Unit B
5322 216 110 324022 226 3720.0 Video Modul 220V
5322 216 110 624022 226 3721.0 Video Modul 12V
5322 310 203 914022 224 7065.0322 692-01conn.modul.operator pan 3460 – CTT

CNC 6600

The CNC 6600 is an advanced control system tailored for modern industrial automation, offering high performance and reliability.

Features
High-speed data processing, comprehensive diagnostics, and seamless networking for enhanced connectivity.

Applications
Ideal for demanding production environments requiring precision, speed, and robust automation.

Key Components
3360/9 Module: Essential for precise motion control and efficient data handling.
EPC 8A: Provides accurate feedback and positioning, optimizing system performance.

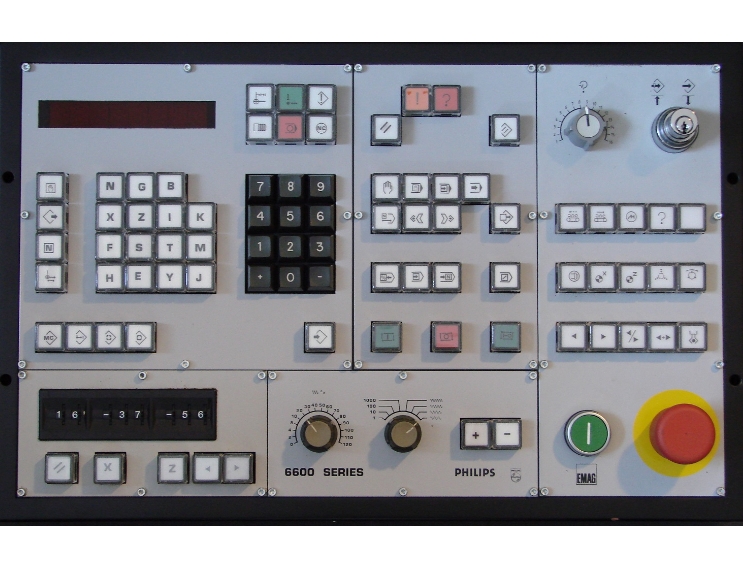

CNC 6600 B1T

ServicecodeTypeID-NummerDescription


5322 216 110 164022 226 0342.032472201ASC Analog Speed Card
5322 695 740 974022 226 0330.032259001ASDC Analog Speed Drive Card-2
5322 216 210 364022 226 1842.032241301BDC Block Display Card
5322 216 251 374022 226 1742.032243501CAC Calcul.Cont.Card
5322 216 252 214022 422 2869.032243701CCC Casset Control Card
5322 216 251 364022 422 1741.032243401CDC Calculator Data Card
5322 216 252 244022 422 2872.032243901CPC Central Processor Card
9700 216 102 018920 401 1020.032252401DCR 3 Digital Cass. Recorder
5322 216 915 89 32244001DEC Boehringer
5322 216 249 914022 226 1709.032243001DEC 1 Data Entry Card
5322 216 140 744022 226 1745.032240201DEC 2 Data Entry Card
5322 216 249 894022 226 1728.032242901DPC Display Card
5322 216 110 384022 224 6851.032478501FUM Funkt.Modul B 1 T
5322 216 249 874022 226 0510.032242701IPC Input Card
5322 216 249 794022 226 0400.032242001LLC1 LMS+LMS Card 1
5322 216 140 824022 226 0401.032240601LLC2 LMS+LMS Card 2
5322 216 110 03 32013001LMS Card 3340/50
5322 216 249 864022 226 0410.032242601LRC1 LMS+RMS Card
5322 216 140 784022 226 0411.032240401LRC 2 LMS+RMS Card
9700 216 200 10  Monitor B 1 T replacement
5322 216 251 35 32243301MPC 16 PROM Card Eprom 2708
5322 216 140 844022 771 0043.032240701MPC 32 PROM Card Eprom 2716
5322 216 112 49 32230401MPC 32/2 PROM Card PROM 27512
5322 216 248 224022 771 0030.032241901MPC 4 PROM Card Eprom 1702
5322 216 140 85 32240801MPC 8 PROM Card Eprom 2708
5322 216 110 174022 226 0560.0 Prom Card 8k+8k
5322 216 248 184022 771 0023.032241801MRC 2 RAM Card
5322 216 251 014022 226 0555.032243201MRC 4 RAM Card
5322 216 210 214022 226 2102.032241201MRC 8 RAM Card
5322 216 214 674022 226 0541.032241401MRC 8 RAM Card New



ServicecodeTypeID-NummerDescription
5322 216 249 824022 226 1707.032242201OMC 1 Opmode Card
5322 216 140 754022 226 1749.032240301OMC 2 Opmode Card
5322 216 249 884022 226 0520.032242801OPC Output Card
5322 216 249 844022 226 0310.032242401PCC Plus Counter Card
5322 216 140 734022 226 1812.032240101PIC PLC Interface
5322 216 140 724022 226 1744.032240001PIC PLC Interface Card 1
5322 216 110 184022 224 6859.032477401PIC PLC Interface Card 2
5322 216 110 194022 224 6860.0 PLC Interface Card 2.2
9700 688 030 80  NCS202-4 Paralell/seriell converter
 9418 960 0000 Rack 6600 W/o battery pack
5322 216 250 984022 226 1741.032243101RPC Reader Puncher Card
5322 216 249 854022 226 0420.032242501RRC 1 RMS+RMS Card 1
5322 216 140 714022 226 0430.032239901RRC 2 RMS+RMS Card 2
5322 216 249 814022 226 0500.032242101RTC Rec. Transm.Card
5322 216 249 834022 226 0300.032242301SDC Servo Drive Card
5322 216 110 154022 226 0301.032013101SDC 2 Servodrive Card II
5322 216 140 794022 226 0320.032240501SMC Motor Drive Card
5322 216 110 014022 226 0730.032212901VDC Video Display Card
PE 1232  Powersupply +/- 12V
PE 1228  Powersupply 24V
PE 1222  Powersupply 5V/16A
PE 1221  Powersupply 5V/7,5A
PE 6600 32261501Powersupply komplett 6600
PE 1239  Powersupply 5V/30A
PE 1241  Powersupply 5V/65A
5322 134 441 69 322163015V lamps
   key caps div. Colours
5322 276 142 79  keys illum.
5322 276 142 78 32268601keys.
 4022 226 0710.0 EMAG operator panel
   B1T operator panel
 4022 226 1748.0 6600 panel w/o DEC
 4022 226 0101.0 6600 panel w/o OMC
   rot.switch 8 Pos Jog
5322 273 34092  rot.switch 16 Pos FEED
   battery pack 9x
   battery NCS
   Fan 115 / 230 VAC
   Software Set (2716-27512)

LMS DRO (Linear Measurement Systems Digital Readouts)

LMS DRO systems are vital for real-time position feedback in CNC operations. These systems translate precise measurements into actionable data, ensuring machining accuracy.

Features
High-resolution position readouts, user-friendly interfaces, and seamless integration with CNC systems.

Applications
Commonly used in milling, grinding, and turning machines to maintain exact tolerances.

Key Components
EPC 8 and EPC 8A Modules: Provide accurate feedback from linear encoders.
Philips LMS DRO: Renowned for its reliability and compatibility with various CNC platforms.

Digital Read Out Transducer Scale

Transducer
ServicecodeTypeID-NummerDescription
   Lamp PE 2432/38
2271PE 2271 Transducer PE2271
2432PE 2432/10 Transducer
2438PE 2438 Transducer LMS III

2470PE 2470 Transducer
248010PE 2480/10 Transducer
248020PE 2480/20 Transducer
248030PE 2480/30 Transducer Area Sensor
248031PE 2480/31 Transducer Area Sensor

2520-00PE 2520/00 Transducer LMS V
2520-10PE 2520/10322-335-01Transducer LMS V + A
2520-20PE 2520/20 Transducer LMS V.1 0.1 µ
2520-30PE 2520/30 Transducer LMS V.1 0.1+A
2520-40PE 2520/40 Transducer LMS V.1 0.5
2520-50PE 2520/50 Transducer LMS V.1 0,5+A
2520-60PE 2520/609418 025 20601Transducer LMS V.1 1,0
2520-70PE 2520/70 Transducer LMS V.1 1,0+A

2580-10PE 2580/10 Transducer LMS IV
2580-20PE 2580/20 Transducer LMS IV
2580-30PE 2580/30 Transducer LMS IV + Sensor
2580-31PE 2580/31 Transducer LMS IV + Sensor

5322 264 54047 L1904A5AFPplug 5 POL PE 2480
9418 025 21000  plug 14 POL PE 2520/10
5322 265 40749 L1904A7FPplug 7 POL PE 2472-76
2585PE 2585 3AX Adapter PE 2580
2586-10PE 2586/10 Adapter PE 2580 1 Achse
2586-20PE 2586/20 Adapter PE 2580 2 Achsen
2586-30PE 2586/30 Adapter PE 2580 3 Achsen
2590PE 2590 rot.measuring system

Read Out
ServicecodeTypeID-NummerDescription

2390PE 2390 Read Out
2420PE 2420 Read Out
2421PE2421/20 Read Out
2424PE 2424 Read Out
2425PE 2425 Read Out
2426PE 2426 Read Out
2427PE 2427 Read Out
2428PE 2428 Read Out
2429PE 2429 Read Out
2471PE 2471 Read Out
2472PE 2472 Read Out
2473PE 2473 Read Out
2474PE 2474 Read Out
2475PE 2475 Read Out 3Ax
2476PE 2476 Read Out
2477PE 2477 Read Out
2478PE 2478 Read Out
2479PE 2479 Read Out
2481PE 2481 Read Out
2500SA 2500 Read Out
2503PE 2503 Read Out
 PE 2503322 449-01Flat panel PE2503
4022 224 7015PE 2503 CPU-Adapter Card
4022 224 7014PE 2503 Misc. Card
4022 100 0932PE 2503 Display Card
RT 1090PE 2507 Step Down Card
4022 100 0934PE 2503 Bus Card
   battery 3V/150 für CPU




Lineale/ Scales
ServicecodeTypeID-NummerDescription

2462PE 2462 Scale 240 mm ST flat
2463PE 2463 Scale 720 mm ST flat
2464PE 2464 Scale 960 mm ST flat
2465PE 2465 Scale 240 mm ST flat
2466PE 2466 Scale 720 mm HG flat
2467PE 2467 Scale 960 mm HG flat
2468PE 2468 Scale 480 mm ST flat
2469PE 2469 Scale 480 mm ST flat
2482PE 2482 Scale 240 mm square
2483PE 2483 Scale 480 mm square
2484PE 2484 Scale 720 mm square
2485PE 2485 Scale 960 mm square
2488PE 2486 Scale 335 mm square

PLC (Programmable Logic Controllers)

PLC systems are integral to modern CNC automation, offering flexibility and control over various machine functions.

Features
Programmable for a wide range of tasks, from basic machine sequencing to advanced control logic.

Applications
Widely used for controlling auxiliary functions in CNC machines, such as tool changers, conveyors, and safety systems.

Key Components
CPU 386: Provides the computational foundation for executing complex logic.
2580/30 Module: Facilitates communication between the PLC and the CNC system.

PLC782 PLC772 PC20 MC20 ISCOS20



PC20/PLC782
ServicecodeTypeID-NummerDescription
5322 219 810 764322 027 9420.2 AD20
5322 219 810 77  AD21
5322 219 810364322 027 9204.2 CP20
 4322 027 9413.1 CP20/2
5322 219 809 864322 027 9206.1 CP22
 4322 027 9400.1 CP23
5322 219 810 744322 027 9414.1 CP24
5322 219 809 994322 027 9421.2 DA20
5322 219 809944322 027 9466.1 IM22
5322 210 809954322 027 9461.1 IM23
 4322 027 9415.1 MM20/2
5322 219 810 414322 027 9207.2 MM20
5322 219 809 874322 027 9208.1 MM21
5322 219 809 884322 027 9416.1 MM22
 4322 027 9201.1 OM20
5322 219 811 174322 027 9202.1 OM21
9465 070 051 014322 027 9410.132276501OM22 (5322 219 809 97)
5322 219 809 984322 027 9470.1 OM23
5322 219 810 024322 027 9217.1 RP20
5322 219 810 034322 027 9218.1 RS20
5322 219 810 044322 027 9220.1 VI20
5322 219 810 874322 027 9203.1 SO20
 4322 027 2300.1 MC20/PLC772
 4322 027 2320.1 MC20/2/PLC722/2
 4322 027 2330.1 PLC 773/MC30
   MC21
 4322 027 9211.1 SC20
 4322 027 9214.1 BP22
 4322 027 9395.1 BP27
 4322 027 9401.1 BP23
 4322 027 9403.1 BP25
 4322 027 9404.1 BP26
 4322 027 9447.1 IO20 (IM20/OM20/SO20)
 4322 027 9449.1 IO21 (screw terminals)
 4322 027 9450.1 IO22 (screw/screw)
 4322 027 9458.1 IO23 (OM22)
 4322 027 9459.1 IO24 (RP20)
 4322 027 3791.1 BI21
 4322 027 3792.1 BI22
 9465 070 22111 IO30
 9390 293 5011.2 CC20
 9390 293 6011.2 CC21
 9390 293 7011.2 CC22
 9390 293 8011.2 CC23
 9390 294 1011.2 RA23
 9390 294 2011.2 RA25
 9390 294 3011.2 RA26
5322 219 810 074322 027 9476.1 SM20

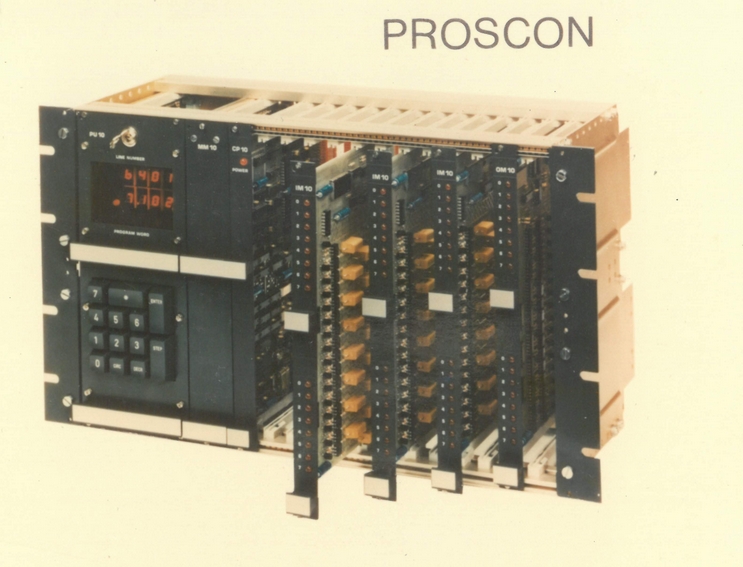

PC10 / Proscon
ServicecodeTypeID-NummerDescription
 4322 027 9040.1 IM11
4022 220 118814322 027 9041.15322 219 84082PU10 – Programming Unit
4022 220 118614322 027 9042.35322 219 84083CP10 Central Processor m.Register
4022 220 118414322 027 9043.45322 219 84084IM10 – Input Module
4022 220 11911  IM11 – Input Module
4022 220 118514322 027 9044.35322 219 84085OM10 – Output Module
4022 220 117314022 220 1185.15322 216 25158OM11 – Output Module
 2422 025 8928.95322 219 502 00OM12
4022 220 118714322 027 9140.15322 219 84081MM10 – Memory Module (Core)
 4322 027 9160.1 LX10
4022 220 118914322 027 9163.15322 219 251 59MM11 – Memory Mod.m.PROM fac.
4022 220 119014322 027 9164.15322 219 84125MM12 – Memory Module (PROM)
   MM13
 8222 421 4157.2 PI10
 9360 011 5011.2 OM12
  5322 216 14072PIC1 – NC6600-PLC interface card
  5322 216 14073PIC2 – NC6600-PLC interface card

ISCOS 20
ServicecodeTypeID-NummerDescription

 4022 770 2200.1 DIB/I 16 Digital Input Isolated
 4022 770 2201.1 DOB/I 16 Digital Output Isolated
 4022 770 2202.2 2ADOB/I 8 Digital Output Isolated
 4022 770 2800.1 ISC 20 CPU
 4022 770 2811.2 4KMEM Mem 4kB

P1000/ISCOS +
ServicecodeTypeID-NummerDescription
 4022 230 0226 CPU PC2126NO / PG9000/10
 9404_462_02331 Temp IO board PMC 1000
 9404-462-10001 DDC00 board PMC 1000
